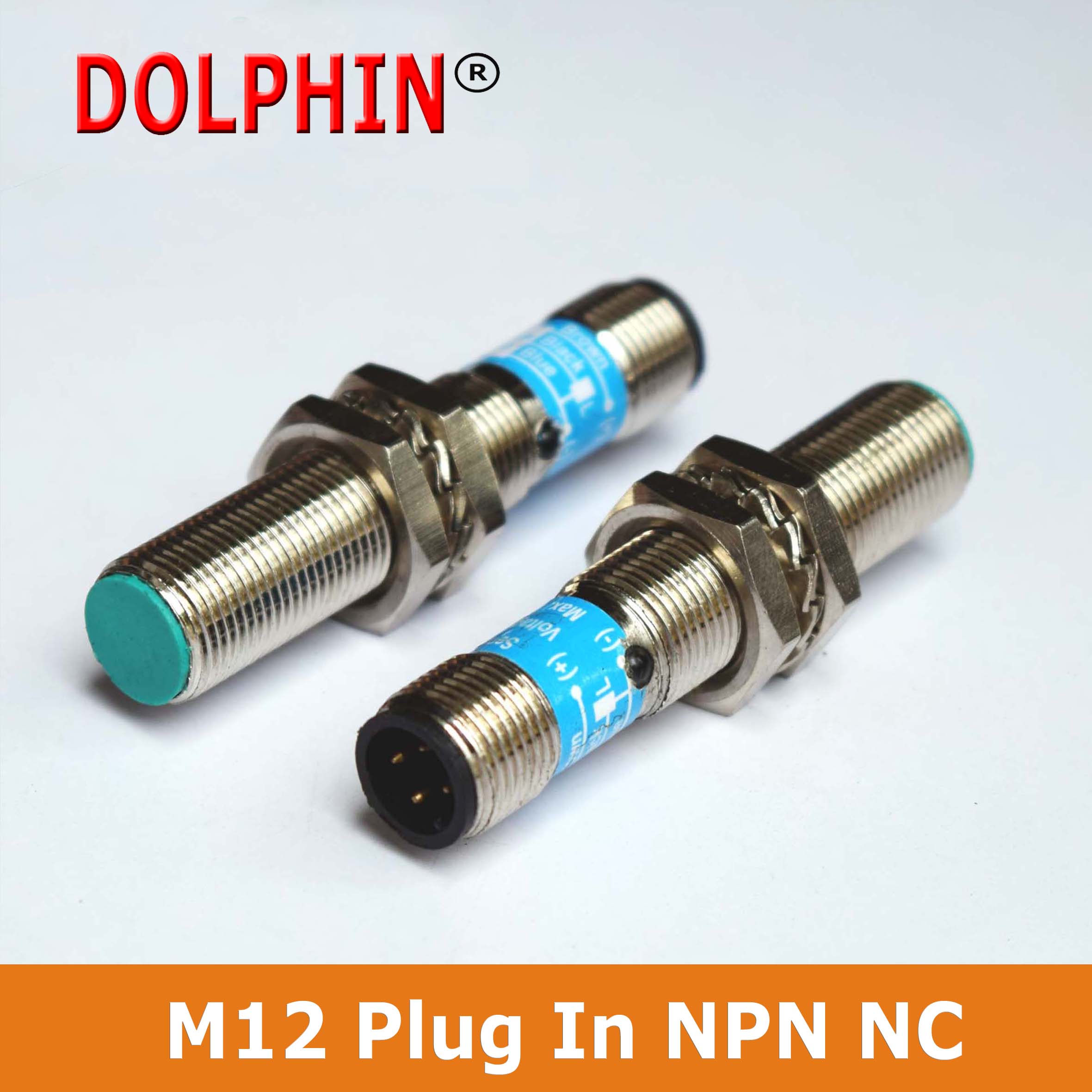

M12 Plug In Sensor NPN NC Make DOLPHIN
Free Shipping include GST @18 %
₹ 275.00
Share
Description
Description:
M12 Inductive proximity Switch
( Sense Metal target )
Description:
- Sensor Switch for sense metal target in 2 mm sensing range with 04 pin CONNECTOR at back connector type ,
- Features Red LED indicator show status.
Specifications:
| Outer Diameter | 12 mm |
| sensing range | 2 mm |
| Operating Voltage | 5-40 VDC |
| Max Load Current | 300mA |
| Output | NPN NC 04 pin at back |
| Housing length | 60 mm |
| Cable Length (Approx.) | NA |
| Mounting | flush |
| Housing | Mettalic Nickel plated |
| Package Content | 1 x M12 Cylinder Sensor Switch |
Salient feature
Reverse polarity Proof , short circuit proof , Over Load Current Protection
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
M8 Sensor available in different housing length ie. 37 mm, 45 mm, 50 mm, 55 mm etc.
