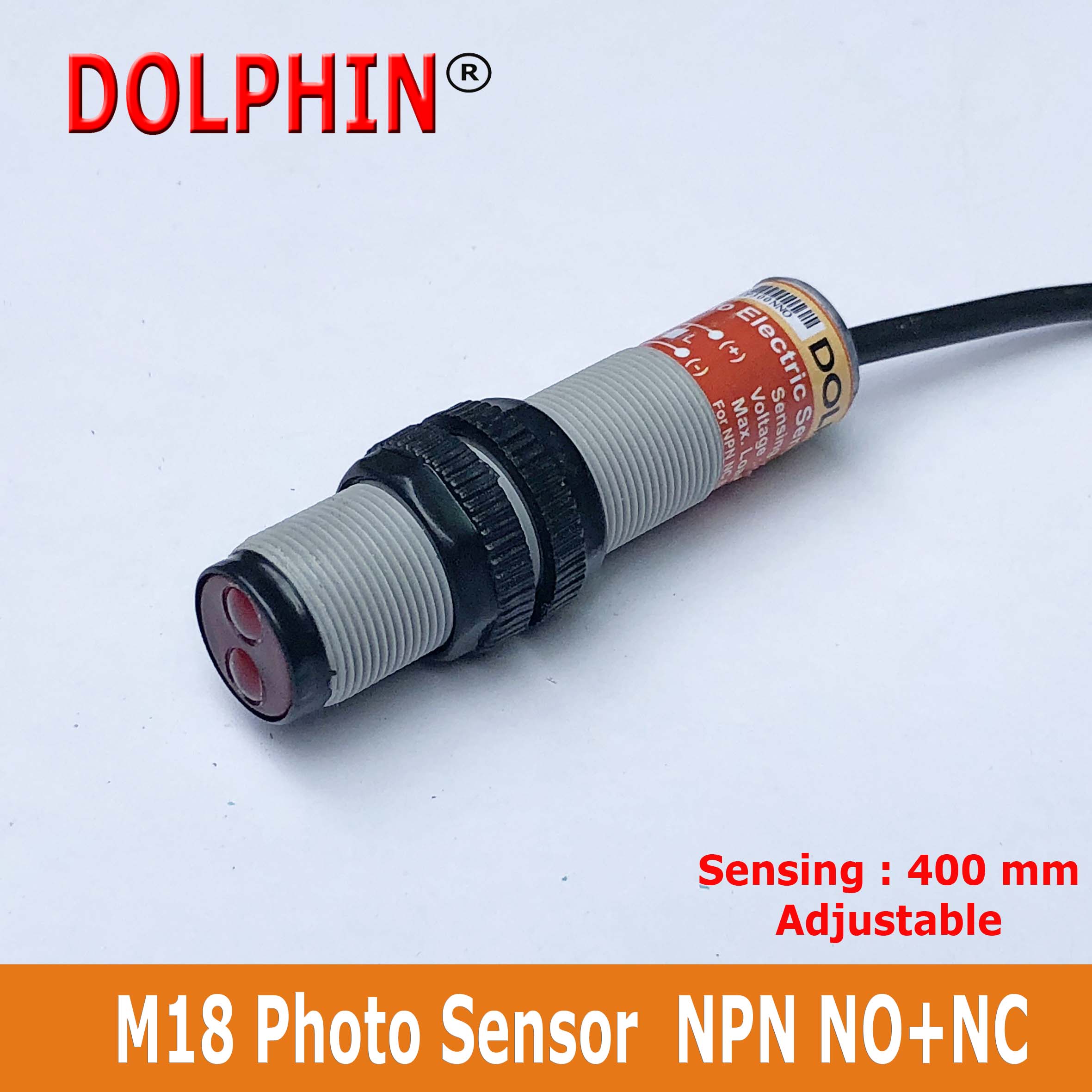

M18 Photo Sensor Diffuse Scan NPN NO+NC Sn: 400 mm PVC BODY Make DOLPHIN
Free Shipping include GST @18 %
₹ 375.00
Share
Description
Description:
M18 diffuse scan Type TX and RX in ine sensor
( Sense any reflecting target come across it )
It also refer as Reflector type , IR Type , Diffuse Scan type , Infra red , photo sensor
Description:
- M18 Sensor having Two Parts TX and Rx in same housing having blue brown ,Black & white four wire for easy connectionNO and NC connection .
- transmitter TX emitt infrared light and when any reflecting target come across it , light get refleted back and recive by reciver RX then it sense and engergise output load , relay PLC etc
- Features Red LED indicator show status.
Specifications:
Outer Diameter |
18 mm |
sensing range |
400 mm |
Operating Voltage |
10-35 VDC |
Max Load Current |
300mA |
Output |
NPN NO+NC 4 wire |
Housing length |
70 mm , Mettallic |
Cable Length (Approx.) |
3 m EACH TX AND RX |
Mounting |
NON flush |
Housing |
PVC BODY |
Package Content |
1 x M18 photo sensor |
Salient feature
shorty circuit proof, over load current protection , reverse polarity proof
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
.
