M18 Retro Reflective Sensor Reflector type PNP NO Sn: 3 Metre Make DOLPHIN
Free Shipping include GST @18 %
₹ 650.00
Share
Description
Description:

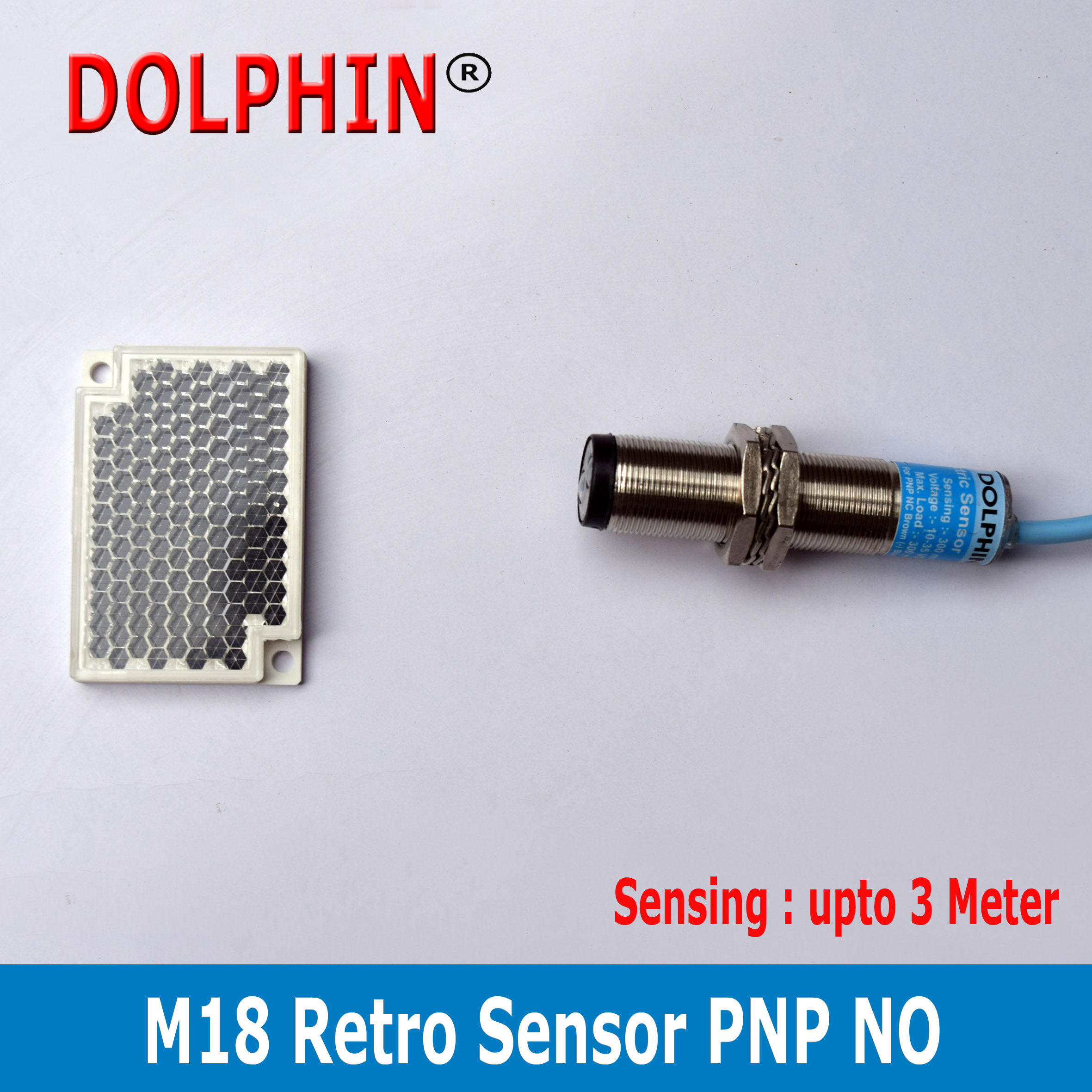

M18 Retro reflective , reflector type
( Sense any target come between them )
Description:
- M18 Sensor having one diffuse part have trnasmitter and reviver have blue brown and Black three wire for easy connection.
- one reflector put across at a distance up to 3 meter opposite each other . trnasmitter emit infrared light and reflected by REFLECTOR and RX recived the Light . When any object come between then then it cut obstruct the light sense and engergise output load , relay PLC etc
- Features Red LED indicator show status.
Specifications:
Outer Diameter |
18 mm |
sensing range |
up to 3 meter |
Operating Voltage |
10-35 VDC |
Max Load Current |
300mA |
Output |
PNP NO 3 wire |
Housing length |
65 mm |
Cable Length (Approx.) |
02 meter |
Mounting |
NON flush |
Housing |
Mettalic Nickel plated |
Package Content |
1 x M18 retro sensor |
Salient feature
shorty circuit proof, over load current protection , reverse polarity proof
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
.
