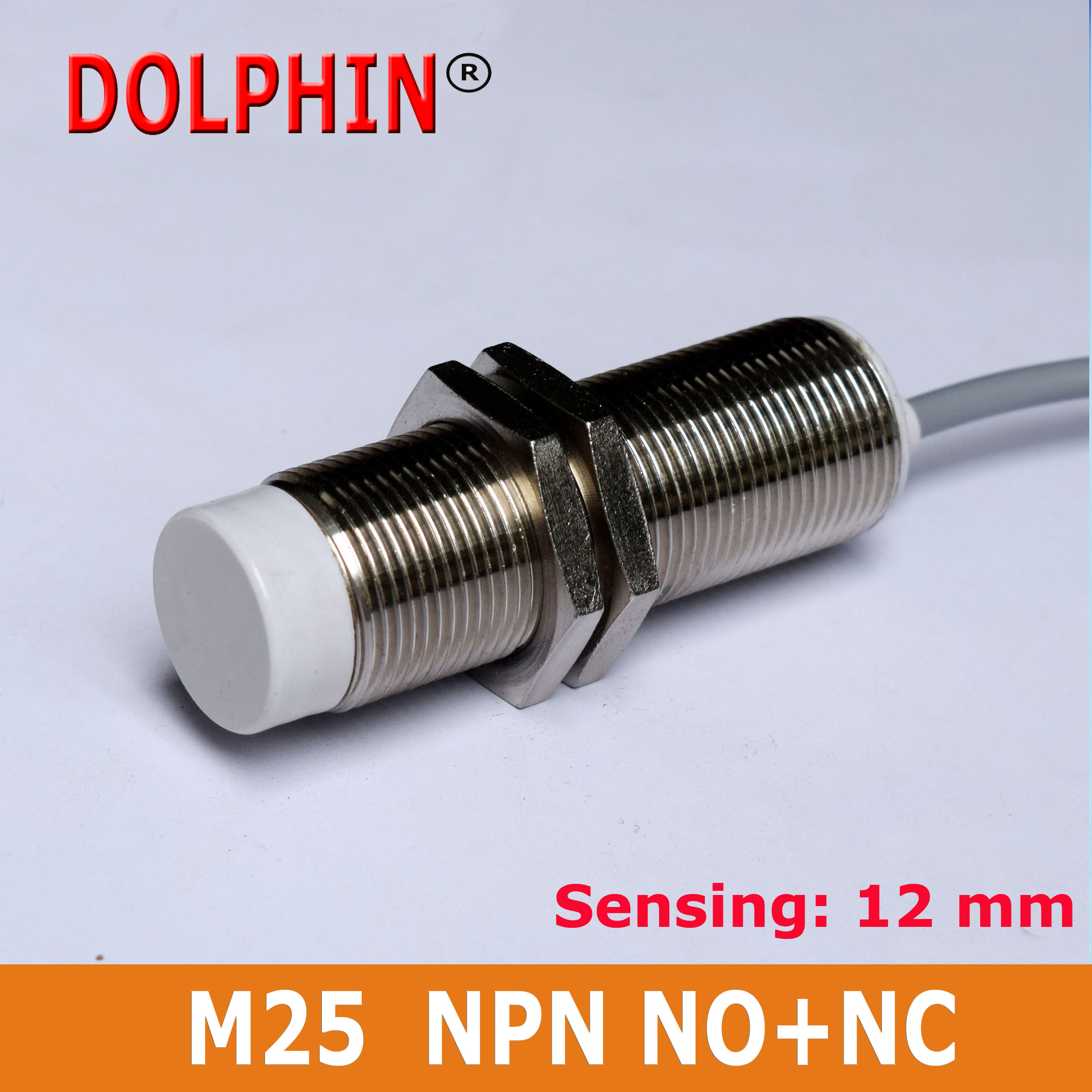

M25 DC Inductive Proximity Switch sn: 12 mm NPN NO+NC Make DOLPHIN
Free Shipping include GST @18 %
₹ 290.00
Share
Description
Description:
M25 Inductive proximity Switch
( Sense Metal target )
Description:
- Sensor Switch for sense metal target in 12 mm sensing range with 2m cable, built in blue and brown white and Black FOUR wire for easy connection.
- Features Red LED indicator show status.
Specifications:
Outer Diameter |
25 mm |
sensing range |
12 mm |
Operating Voltage |
5-40 VDC |
Max Load Current |
300mA |
Output |
NPN NO+NC 3 wire |
Housing length |
50 mm |
Cable Length (Approx.) |
2 m |
Mounting |
NON flush |
Housing |
Mettalic Nickel plated |
Package Content |
1 x M25 Cylinder Sensor Switch |
Salient feature
shorty circuit proof, over load current protection , reverse polarity proof
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
M30 Sensor available in different housing length ie. 60 mm , 70 mm , 80 mm, 90 mm etc.
