M30 DC Proximity switch NPN NO+NC Sn: 10 mm Make DOLPHIN
Free Shipping include GST @18 %
₹ 275.00
Share
Description
Description:

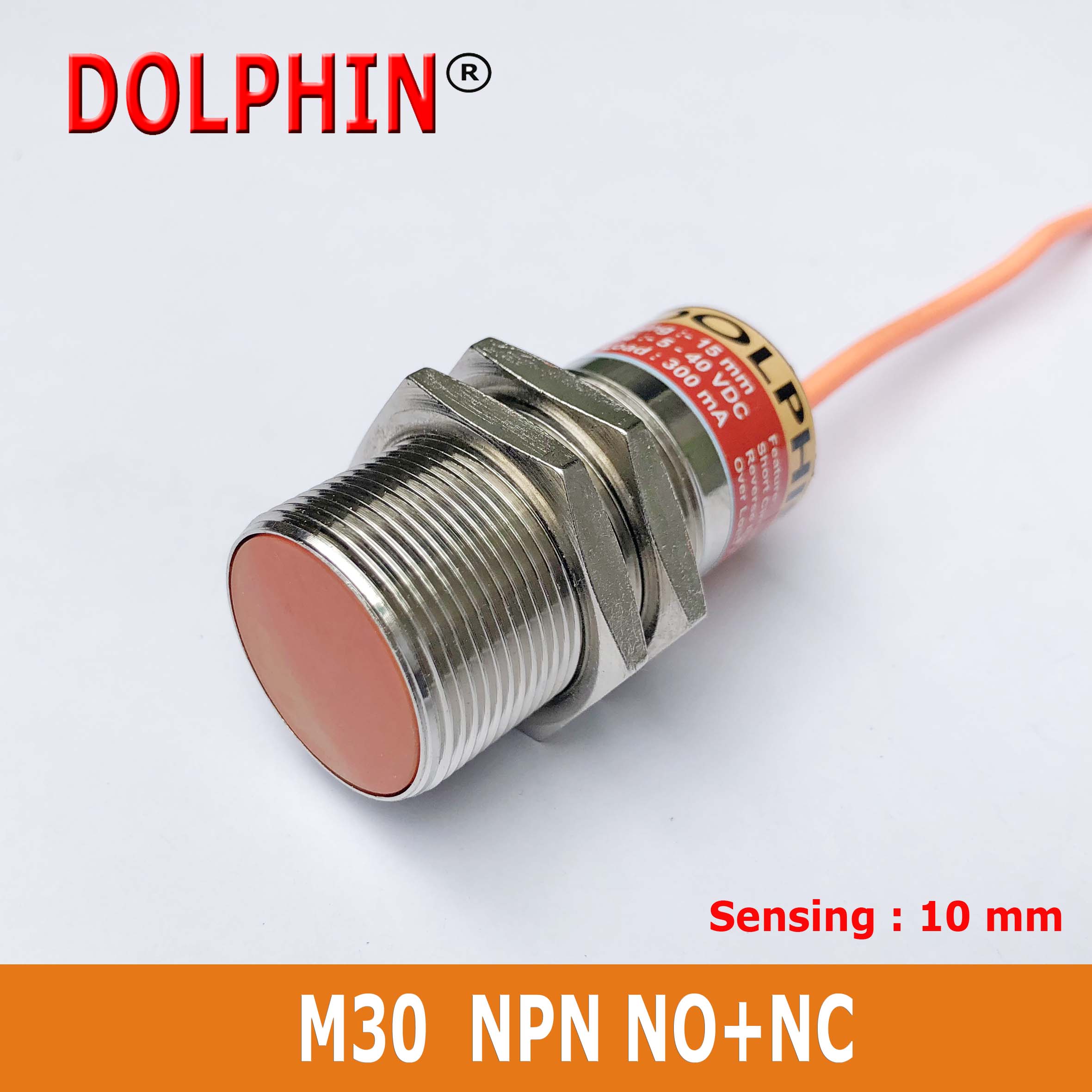

M30 Inductive proximity Switch
( Sense Metal target )
Description:
- Sensor Switch for sense metal target in 10 mm sensing range with 2m cable, built in blue and brown white & Black four wire for easy connection.
- Features Red LED indicator show status.
Specifications:
Outer Diameter |
30 mm |
sensing range |
10 mm |
Operating Voltage |
5-40 VDC |
Max Load Current |
300mA |
Output |
NPN NO+NC 3 wire |
Housing length |
70 mm |
Cable Length (Approx.) |
2 m |
Mounting |
NON flush |
Housing |
Mettalic Nickel plated |
Package Content |
1 x M30 Cylinder Sensor Switch |
Salient feature
shorty circuit proof, over load current protection , reverse polarity proof
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
M30 Sensor available in different housing length ie. 60 mm , 70 mm , 80 mm, 90 mm etc.
