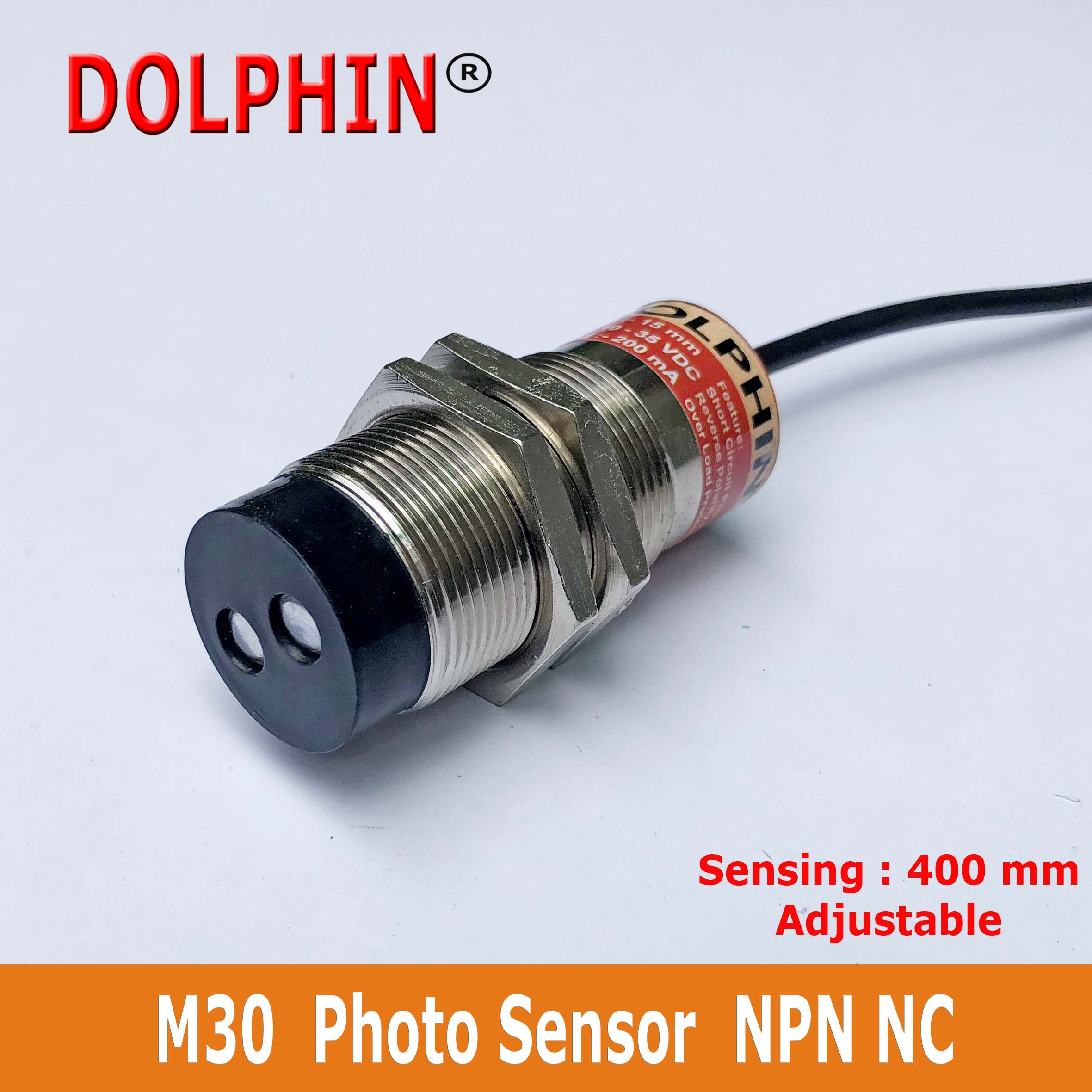

M30 Photo Sensor Diffuse Scan NPN NC Sn: 400 mm Make DOLPHIN
Free Shipping include GST @18 %
₹ 425.00
Description
Description:
M30 diffuse scan Type TX and RX in ONE sensorÂ
( Sense any reflecting target come across it  )
It also refer as Reflector type , IR Type , Diffuse Scan type , Infra red , photo sensor
Description:
- M18 Sensor having Two Parts TX and Rx in same housing having blue brown and Black three wire for easy connection.
- transmitter TX emitt infrared light and when any reflecting target come across it , light get refleted back and recive by reciver RXÂ Â then it sense and engergise output load , relay PLC etc
- Features Red LED indicator show status.
Â
Specifications:
Â
  Outer Diameter |
  30 mm |
  sensing range |
  400 mm |
  Operating Voltage |
   10-35 VDC |
  Max Load Current |
   300mA |
  Output |
 NPN NC 3 wire |
  Housing length |
   70 mm , Mettallic |
  Cable Length (Approx.) |
    02 meter |
  Mounting |
    NON flush |
  Housing |
   Mettalic Nickel plated |
  Package Content |
  1 x M30 photo sensor |
Salient feature
shorty circuit proof, over load current protection , reverse polarity proof
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
.
