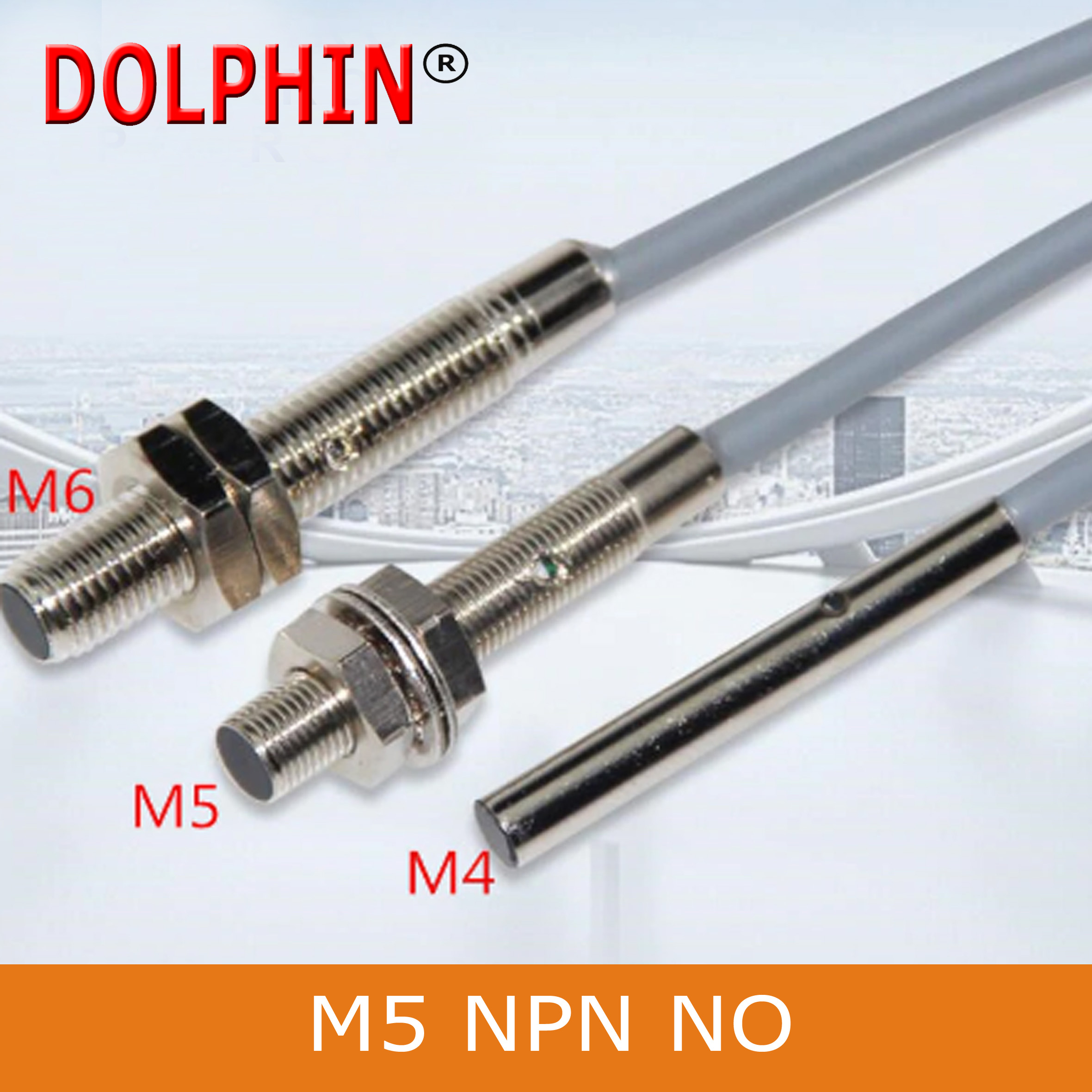

M5 NPN NO SN: 1 MM MAKE CHXINSHE
Free Shipping include GST @18 %
₹ 700.00
Share
Description
Description:
General
| Diameter | 5 mm |
| External dimensions | Φ5×30 |
| Installation type | Non-shielded |
| Detection distance | 1 mm |
| Output | NPN NO |
| Supply voltage | 10-35 Vdc |
| Output current | 300mA max |
| Standard detected object | Mild steel (5x5x1mm) |
| Sensing object | metals |
| Response frequency | 500Hz |
| Output indication | Red LED |
| Short-circuit protection | No |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min |
| Dielectric strength | 1000Vac, 1min |
| IP Rating | IP65 |
| Operating temperature | -25 to 70 °C (13 to 158 °F) |
| Cable length | 1.2m, PVC cable |
| Material | BRASS NICKEL PLATED |
Additional information
| lenth | 60 mm |
|---|
