M12 Hall Effect Magnetic Sensor sn: 10 mm NPN NO+NC Make DOLPHIN

Free Shipping  include GST @18 %

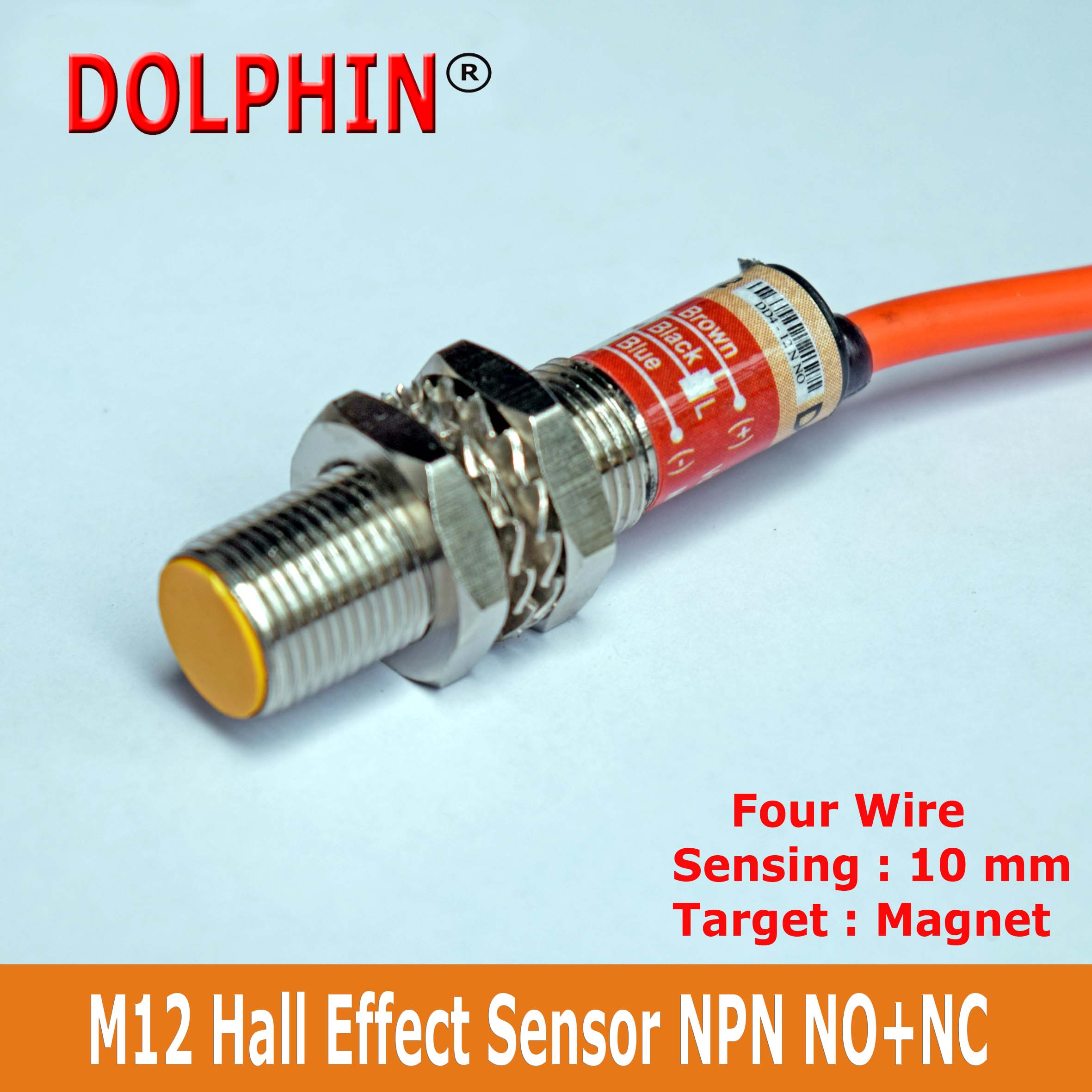

M12 Hall effect Magnetic  proximity Switch / Sensor
( Sense magnet target  )

  • Sensor Switch for sense magnetic  target but sense South pole of magnet  use where we need high switching frequency built in blue and brown white & Black  four  wire for easy connection.
  • Features Red LED indicator show status.



Outer Diameter      12 mm
sensing range      10  mm  sense south pole of magnet
Operating Voltage      5-40 VDC
Max Load Current      300mA
Output     NPN NO+NC  4 wire
Housing length      60 mm
Cable Length (Approx.)      2 m
Mounting      flush
Housing      Mettalic Nickel plated
Package Content     1 x M12 Cylinder magnetic  Switch

Salient feature

Reverse polarity Proof , short circuit proof , Over Load Current Protection


Above sensor available in 02 meter cable Length . For extra cable length contact us .

M8 Sensor available in different housing length ie.  37 mm, 45 mm, 50 mm, 55 mm etc.
