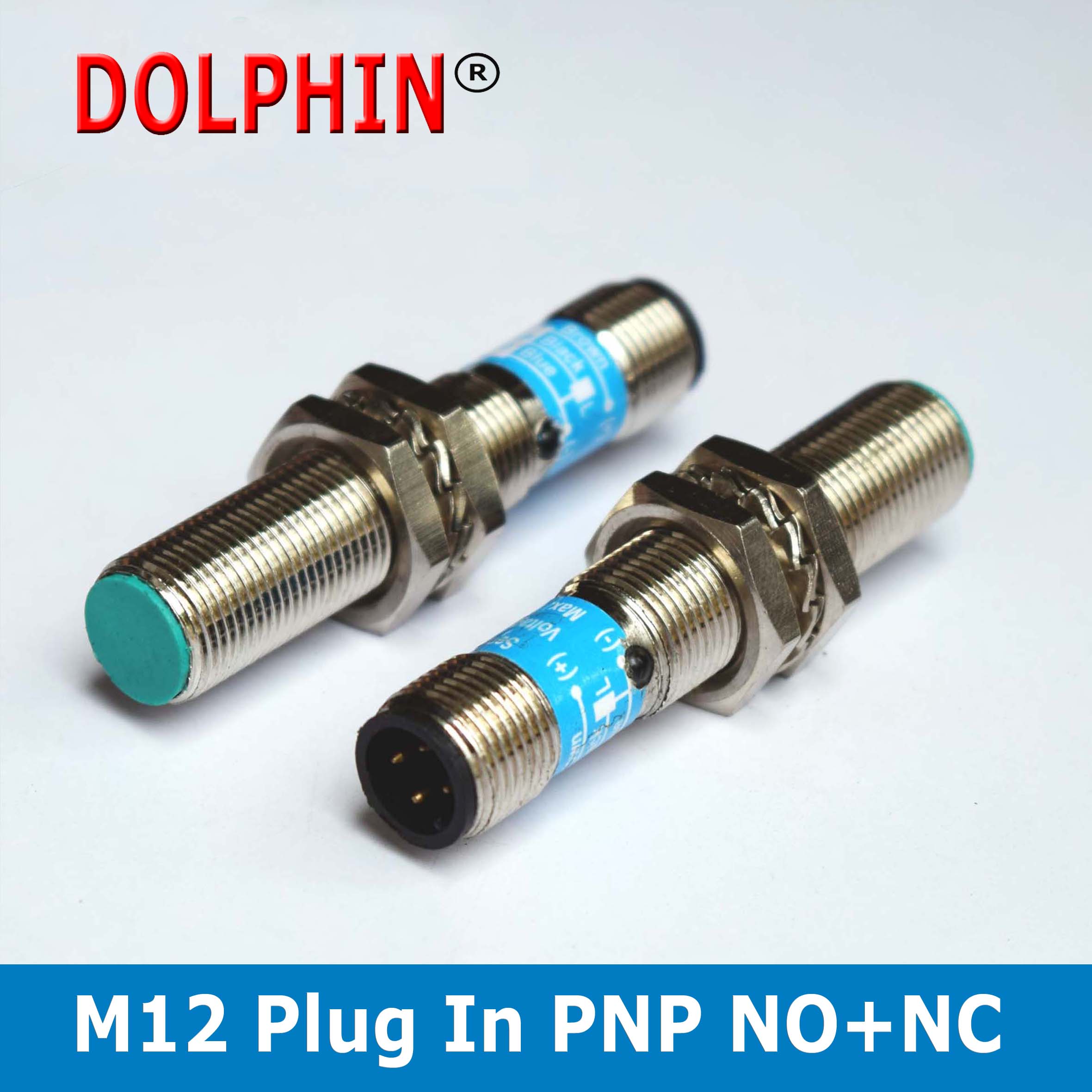

M12 Plug In Sensor PNP NO+NC Make DOLPHIN

Free Shipping  include GST @18 %





M12 Inductive proximity Switch
( Sense Metal target )

  • Sensor Switch for sense metal target in 2  mm sensing range with 04 pin  CONNECTOR  at back connector type ,
  • Features Red LED indicator show status.



Outer Diameter      12  mm
sensing range      2 mm
Operating Voltage      5-40 VDC
Max Load Current      300mA
Output     PNP NO+NC  04 pin at back
Housing length     60 mm
Cable Length (Approx.)      NA
Mounting      flush
Housing      Mettalic Nickel plated
Package Content     1 x M12 Cylinder Sensor Switch

Salient feature

Reverse polarity Proof , short circuit proof , Over Load Current Protection


Above sensor available in 02 meter cable Length . For extra cable length contact us .

M8 Sensor available in different housing length ie.  37 mm, 45 mm, 50 mm, 55 mm etc.
