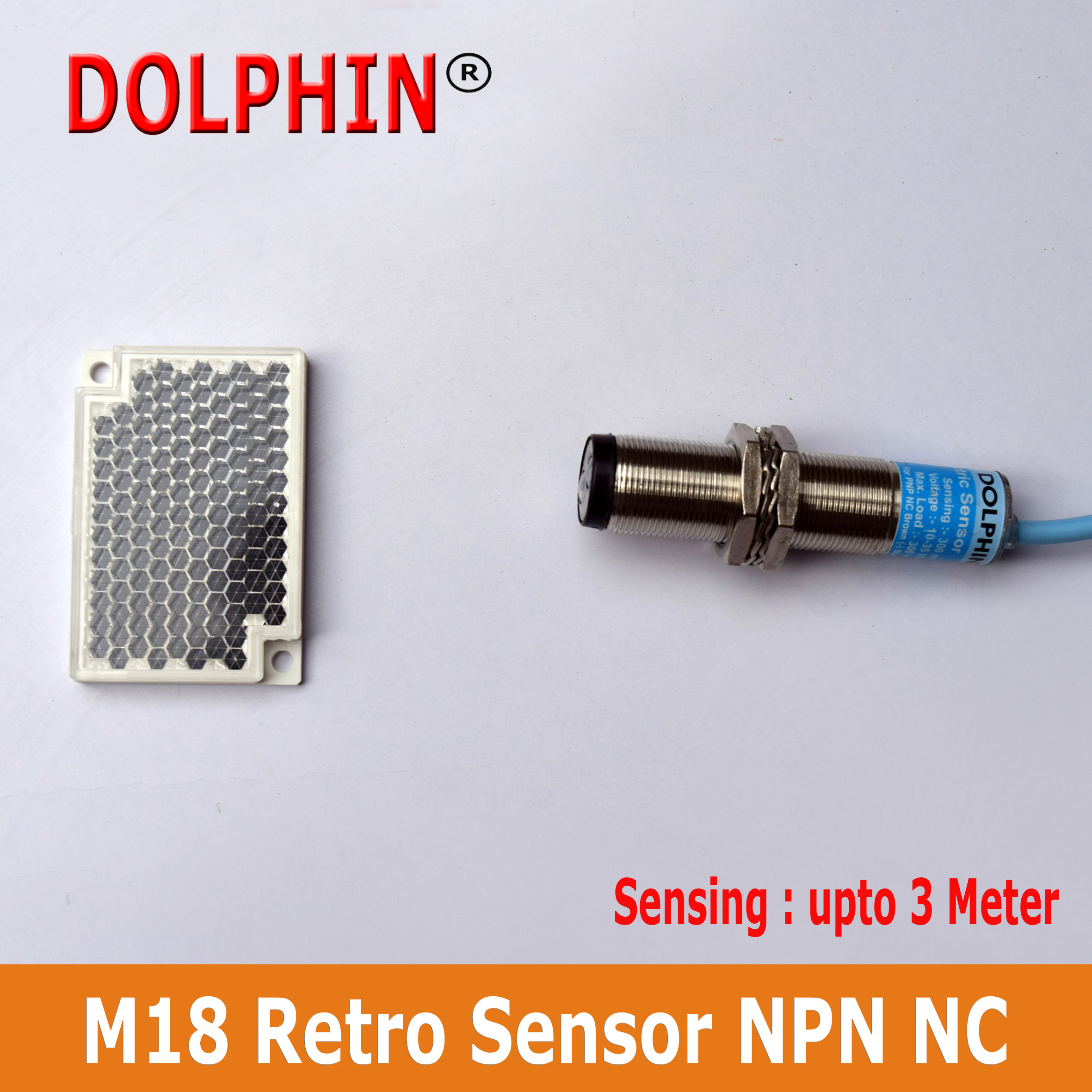

M18 Retro Reflective Sensor Reflector type NPN NC Sn: 3 Metre Make DOLPHIN

Free Shipping  include GST @18 %

 650.00

Share

Description

Description:

M18  Retro reflective , reflector type

( Sense any target come between them  )

Description:
  • M18 Sensor having one diffuse part have trnasmitter and reviver have  blue  brown and Black three  wire for easy connection.
  • one reflector put across at a distance up to 3 meter  opposite each other . trnasmitter  emit infrared light and reflected by REFLECTOR and  RX recived the Light . When any object come between then then it cut obstruct the light  sense and engergise output load , relay PLC etc
  • Features Red LED indicator show status.

Specifications:


   Outer Diameter

   18 mm

   sensing range

     up to 3 meter

   Operating Voltage

    10-35 VDC

   Max Load Current

     300mA

    Output

  NPN NC  3 wire

    Housing length

     65 mm

   Cable Length (Approx.)

     02 meter

    Mounting

     NON flush

    Housing

     Mettalic Nickel plated

    Package Content

    1 x M18 retro sensor

Salient feature

shorty circuit proof, over load current protection , reverse polarity proof

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

.
