M18 Through Beam Sensor TX RX type PNP NO Sn: 5 Metre Make DOLPHIN

Free Shipping  include GST @18 %

 650.00

Share

Description

Description:

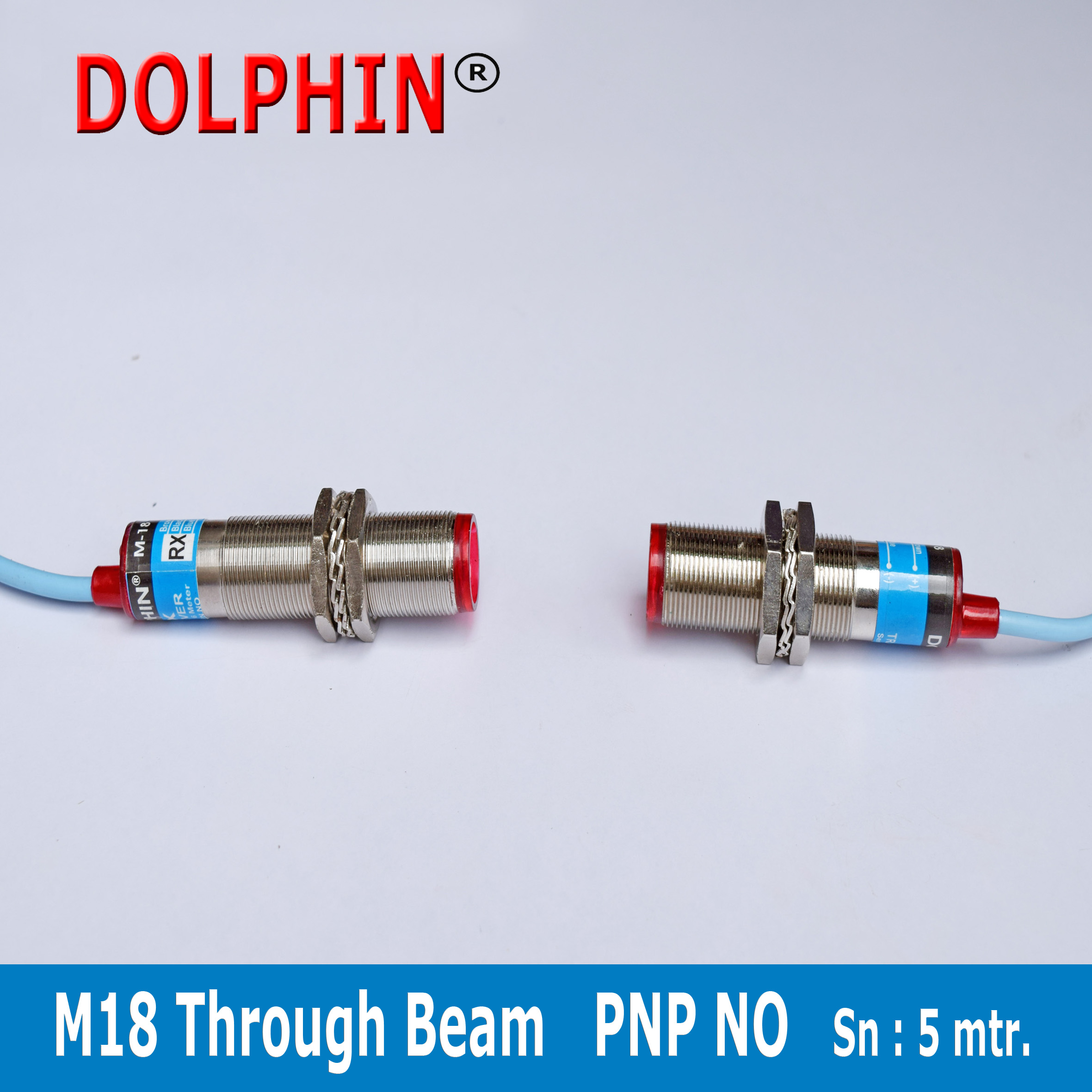

M18  Through Beam Type TX and RX type

( Sense any target come between them  )

Description:
  • M18 Sensor having Two Parts TX  Two wire brown blue for supply and RX having blue  brown and Black three  wire for easy connection.
  • Both TX  and RX put across opposite each other . Tx emit infrared light and RX recived the Light . When any object come between then then it sense and engergise output load , relay PLC etc
  • Features Red LED indicator show status.

Specifications:


   Outer Diameter

   18 mm

   sensing range

     5 meter

   Operating Voltage

    10-35 VDC

   Max Load Current

     300mA

    Output

  PNP NO  3 wire

    Housing length

     65 mm

   Cable Length (Approx.)

     3 m EACH TX AND RX

    Mounting

     NON flush

    Housing

     Mettalic Nickel plated

    Package Content

    1 x M18 THROGH BEAM

Salient feature

shorty circuit proof, over load current protection , reverse polarity proof

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

.
