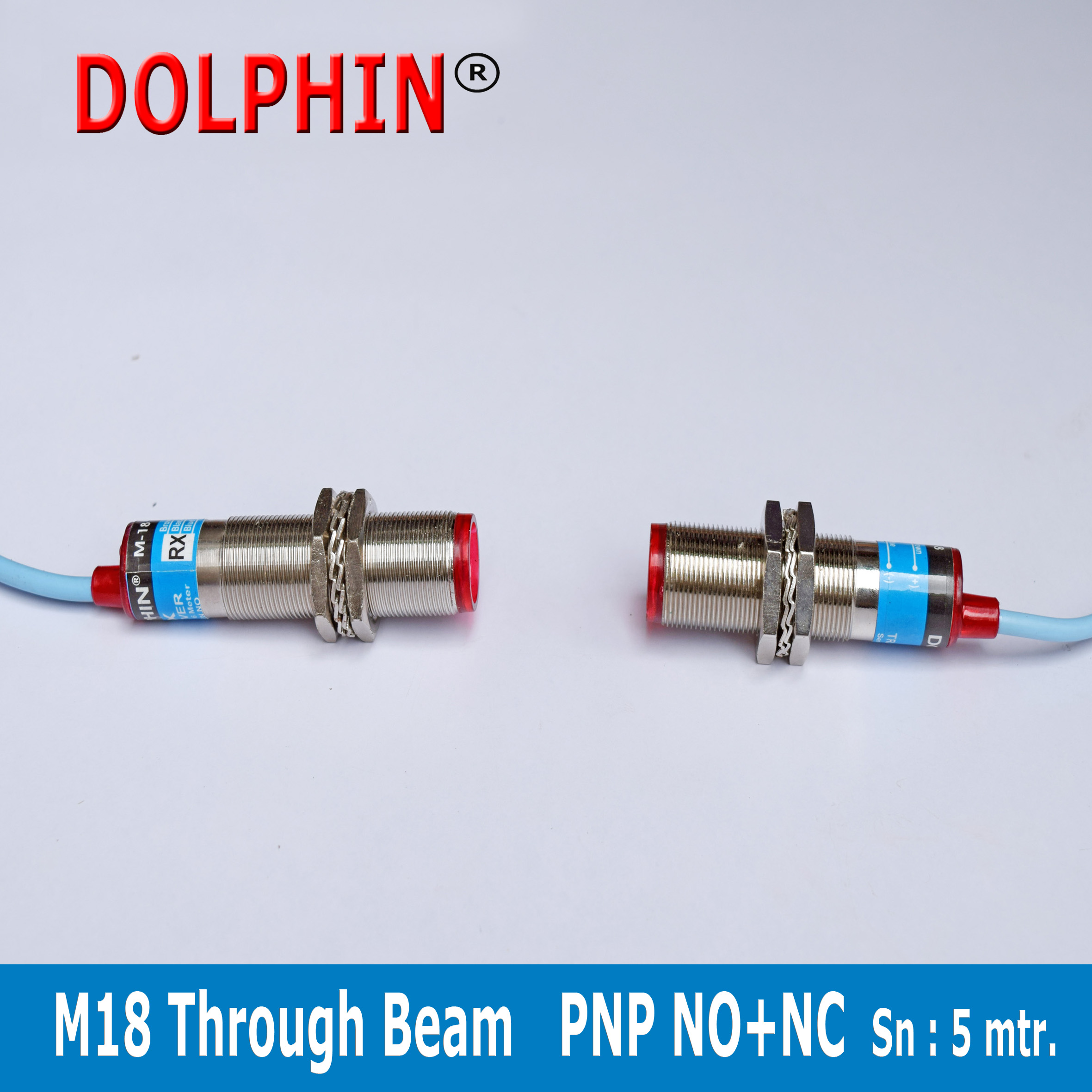

M18 Through Beam Sensor TX RX type PNP NO+NC Sn: 5 Metre Make DOLPHIN

Free Shipping  include GST @18 %

 650.00

Share

Description

Description:

M18  Through Beam Type TX and RX type

( Sense any target come between them  )

Description:
  • M18 Sensor having Two Parts TX  Two wire brown blue for supply and RX having blue  brown BLACK and white four wire for easy connection for NO and NC function simultaneously .
  • Both TX  and RX put across opposite each other . Tx emit infrared light and RX recived the Light . When any object come between then then it sense and engergise output load , relay PLC etc
  • Features Red LED indicator show status.

Specifications:


   Outer Diameter

   18 mm

   sensing range

     5 meter

   Operating Voltage

    10-35 VDC

   Max Load Current

     300mA

    Output

  PNP NO+NC  4 wire

    Housing length

     65 mm

   Cable Length (Approx.)

     3 m EACH TX AND RX

    Mounting

     NON flush

    Housing

     Mettalic Nickel plated

    Package Content

    1 x M18 THROGH BEAM

Salient feature

shorty circuit proof, over load current protection , reverse polarity proof

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

.
