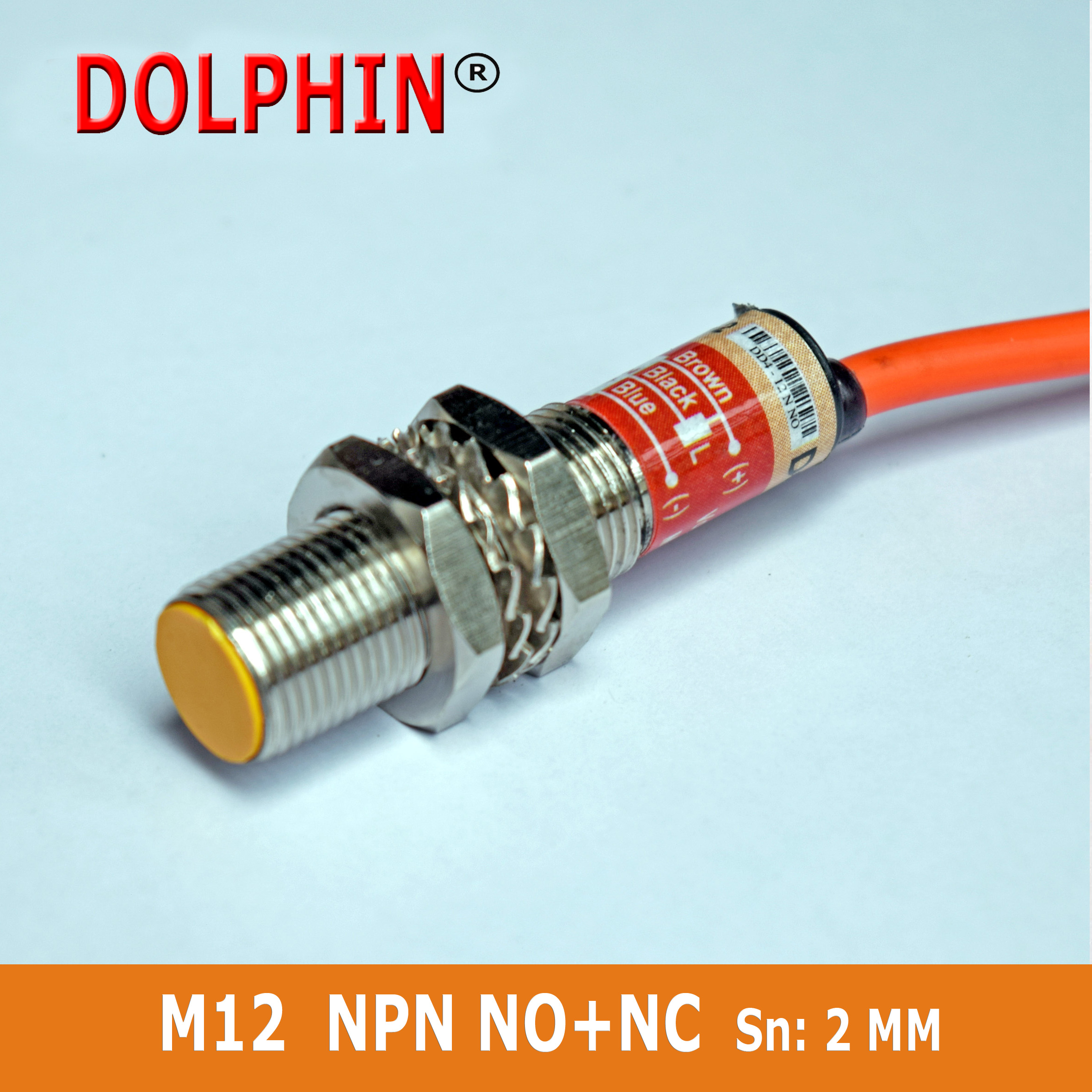

M12 DC Inductive proximity switch sn: 2mm NPN NO+NC Make DOLPHIN

Free Shipping  include GST @18 %

 300.00

Share

Description

Description:

M12  Inductive proximity Switch

( Sense Metal target )



Description:
  • Sensor Switch for sense metal target in 2  mm sensing range with 2m cable, built in blue and brown , Black & WHITE  four  wire for easy connection.
  • Features Red LED indicator show status.

Specifications:


   Outer Diameter

    12 mm

   sensing range

     2 mm

   Operating Voltage

    5-40 VDC

   Max Load Current

     300mA

    Output

    NPN NO+NC 4 wire

    Housing length

     50 mm

   Cable Length (Approx.)

     2 m

    Mounting

     NON flush

    Housing

     Mettalic Nickel plated

    Package Content

    1 x M30 Cylinder Sensor Switch

Salient feature

shorty circuit proof, over load current protection , reverse polarity proof

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

M30 Sensor available in different housing length ie.   60 mm , 70 mm , 80 mm, 90 mm etc.
