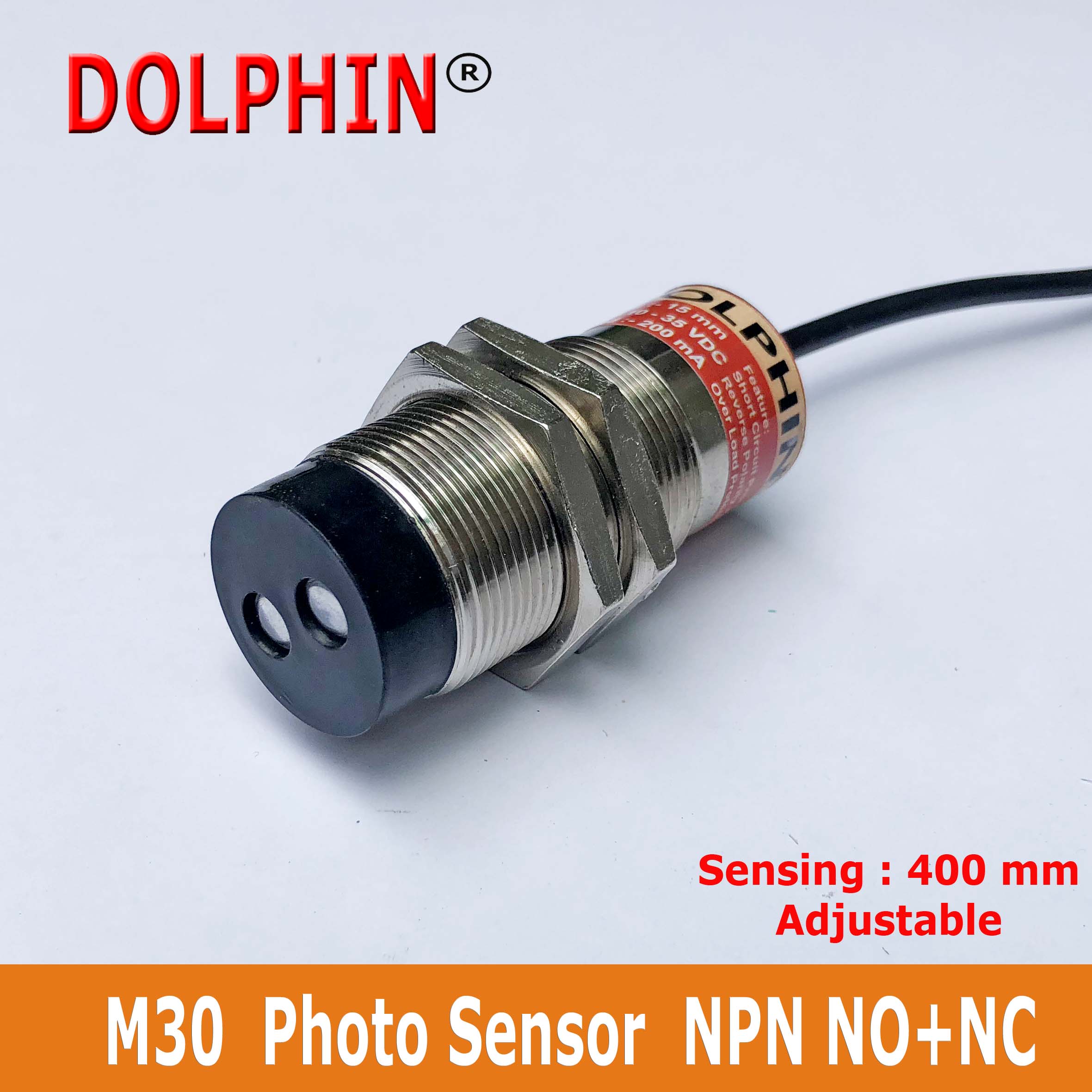

M30 Photo Sensor Diffuse Scan NPN NO+NC Sn: 400 mm Make DOLPHIN

Free Shipping  include GST @18 %

 425.00

Share

Description

Description:

M30 diffuse scan Type TX and RX in ONE sensor

( Sense any reflecting target come across it   )

It also refer as Reflector type , IR Type , Diffuse Scan type , Infra red , photo sensor

Description:
  • M18 Sensor having Two Parts TX and Rx in same housing  having blue  brown white and Black four  wire for easy connection.
  • transmitter TX emitt infrared light and when any reflecting target come across it , light get refleted back and recive by reciver RX   then it sense and engergise output load , relay PLC etc
  • Features Red LED indicator show status.

Specifications:


   Outer Diameter

   30 mm

   sensing range

    400 mm

   Operating Voltage

    10-35 VDC

   Max Load Current

     300mA

    Output

 NPN NO+NC  3 wire

    Housing length

     70  mm , Mettallic

   Cable Length (Approx.)

     02 meter

    Mounting

     NON flush

    Housing

     Mettalic Nickel plated

    Package Content

    1 x M30 photo sensor

Salient feature

shorty circuit proof, over load current protection , reverse polarity proof

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

.
