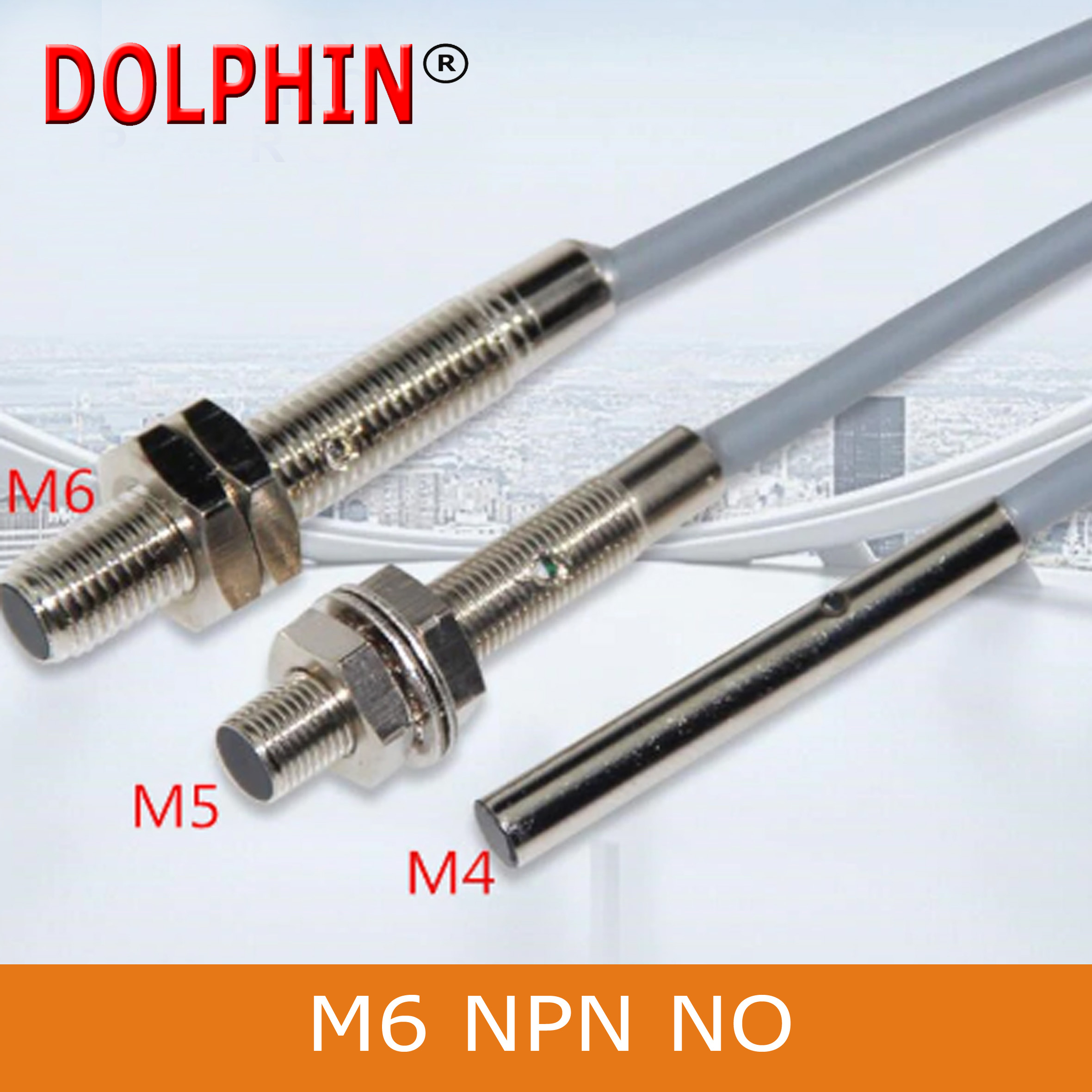

M6 NPN NO SN: 1 MM MAKE CHXINSHE

Free Shipping  include GST @18 %

 700.00

Share

Description

Description:

General
Diameter  6 mm
External dimensions Φ5×30
Installation type Non-shielded
Detection distance 1  mm
Output NPN NO
Supply voltage 10-35 Vdc
Output current 300mA max
Standard detected object Mild steel (5x5x1mm)
Sensing object  metals
Response frequency 500Hz
Output indication Red LED
Short-circuit protection No
Reverse connection protection Yes
Housing lenth 35 mm
Dielectric strength 1000Vac, 1min
IP Rating IP65 as per
Operating temperature -25 to 70 °C (13 to 158 °F)
Cable length 1.2m, PVC cable
Material BRASS NICKEL PLATED
