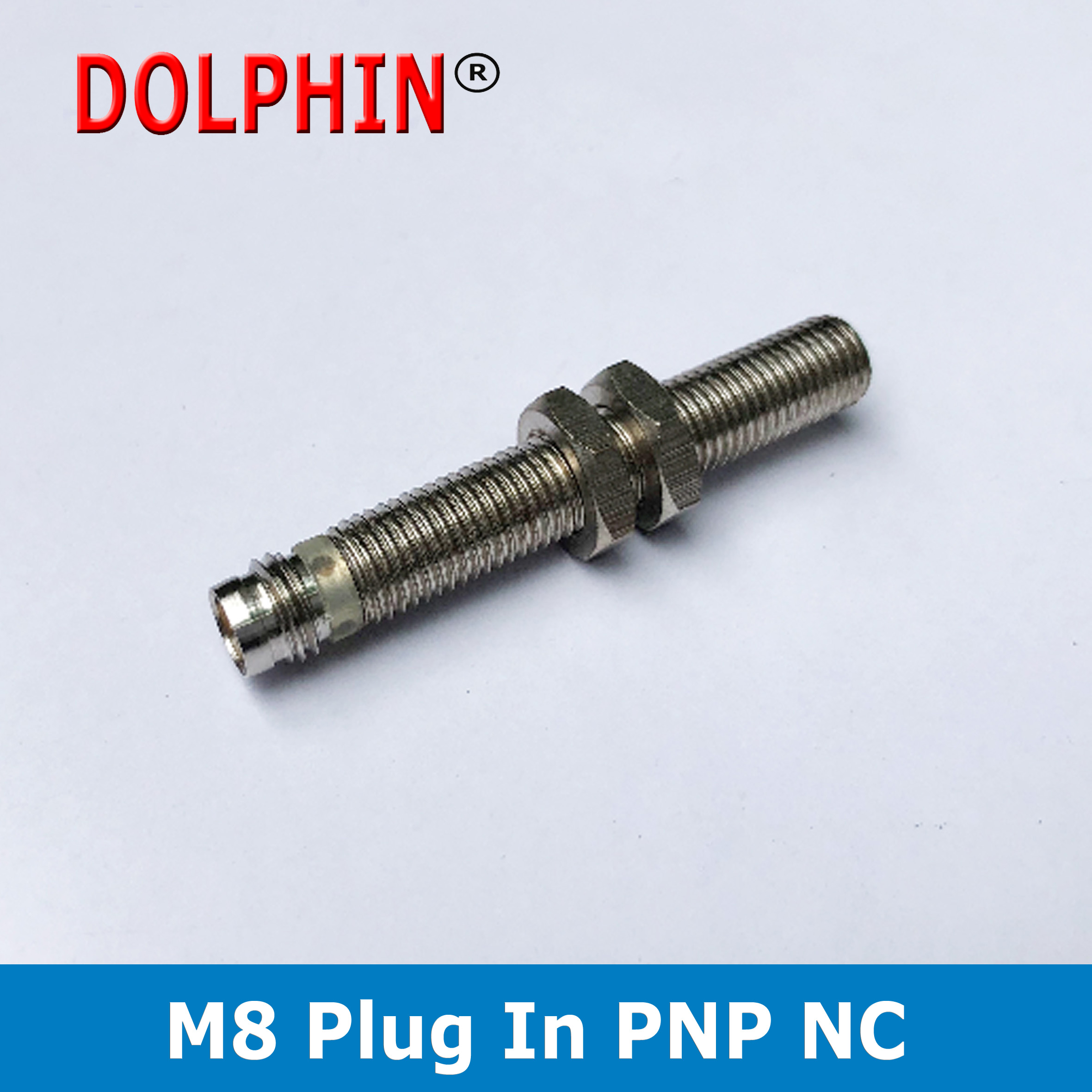

M8 Plug In Sensor PNP NC Make DOLPHIN

Free Shipping  include GST @18 %

 275.00

Share

Description

Description:

M8 Inductive proximity Switch
( Sense Metal target )

Description:
  • Sensor Switch for sense metal target in 1.5  mm sensing range with 03 pin at back connector type ,
  • Features Red LED indicator show status.

 Specifications:



Outer Diameter      8 mm
sensing range      2 mm
Operating Voltage      5-40 VDC
Max Load Current      300mA
Output      PNP NC  03 pin at back
Housing length      45 mm
Cable Length (Approx.)      NA
Mounting      flush
Housing      Mettalic Nickel plated
Package Content     1 x M8 Cylinder Sensor Switch

Salient feature

Reverse polarity Proof , short circuit proof , Over Load Current Protection

Note

Above sensor available in 02 meter cable Length . For extra cable length contact us .

M8 Sensor available in different housing length ie.  37 mm, 45 mm, 50 mm, 55 mm etc.
