Magnetic proximity

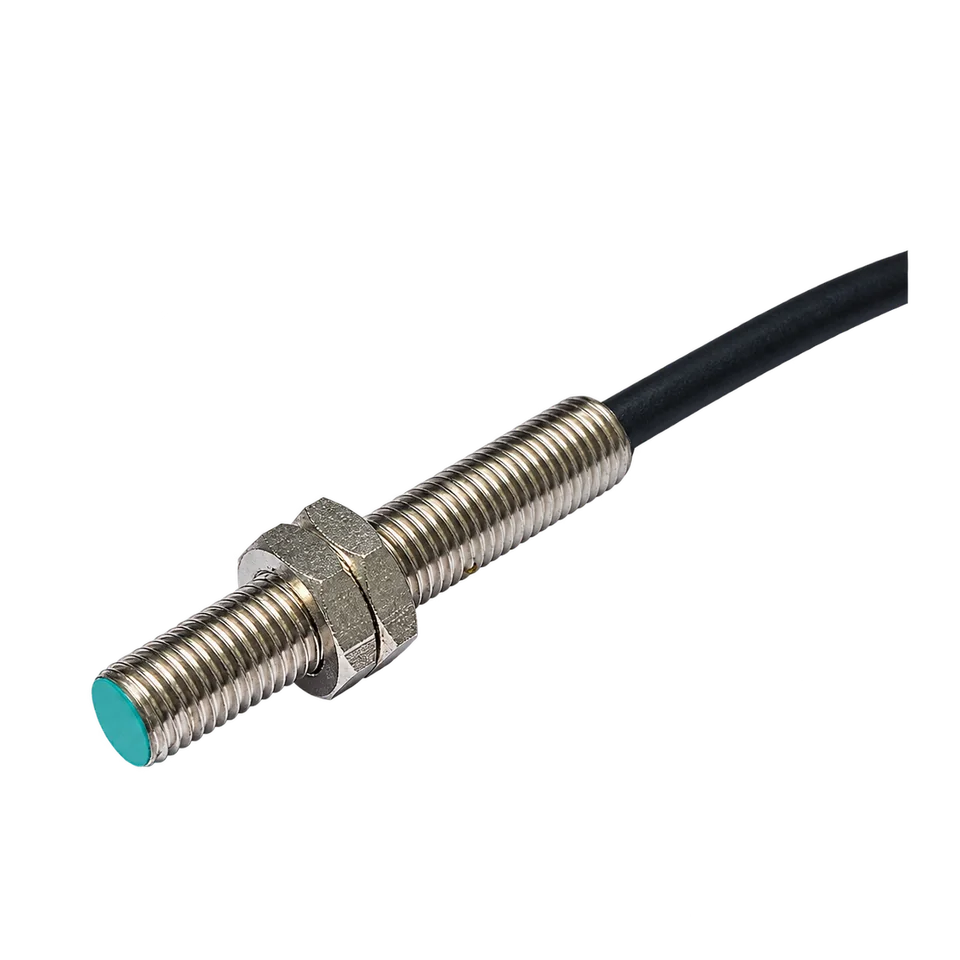

M8 Magnetic Sensor PNP NC

Name: M8 Magnetic Sensor PNP NC
Brand: Dolphin

Magnetic Sensors

Magnetic proximity detection for a magnet-equipped target. Sensing distance depends on the magnet; the internal switching technology requires confirmation.

10 mm
Sensing range: PNP / NC
Output: Cable
Connection: M8
Housing: 5-40 VDC
Supply: flush
Mounting

PRODUCT SPECIFICATIONS

Technical data

Download CSV

M8 Magnetic Sensor PNP NC Catalog reference

Technical specifications for M8 Magnetic Sensor PNP NC
Sensing01
Technology	Magnetic proximity
Manufacturer	Dolphin
Housing / form	M8
Sensing range	10 mm
Electrical02
Operating voltage	5-40 VDC
Output circuit	PNP
Switching function	NC
Maximum load current	300mA
Mechanical03
Connection	Cable
Wire count	3
Wiring notes	Catalogue audit 25 October 2026: 3 conductors recorded from explicit, consistent product notation (Output: PNP NC 3 wire). Source-based catalogue value; wiring diagram and terminal assignment still require verification.
Cable length	2 m
Mounting	flush
Housing material	Metallic Nickel plated
Dimensions / length	45 mm
Dimensional reference04
Body diameter	8 mm
Housing length (excluding tip)	45 mm
Magnetic detection05
Range condition	Depends on the target magnet; confirm magnet strength and installation.
Status indicator	Red LED
