Inductive

M12 Plug In Sensor NPN NO+NC

Inductive Sensors

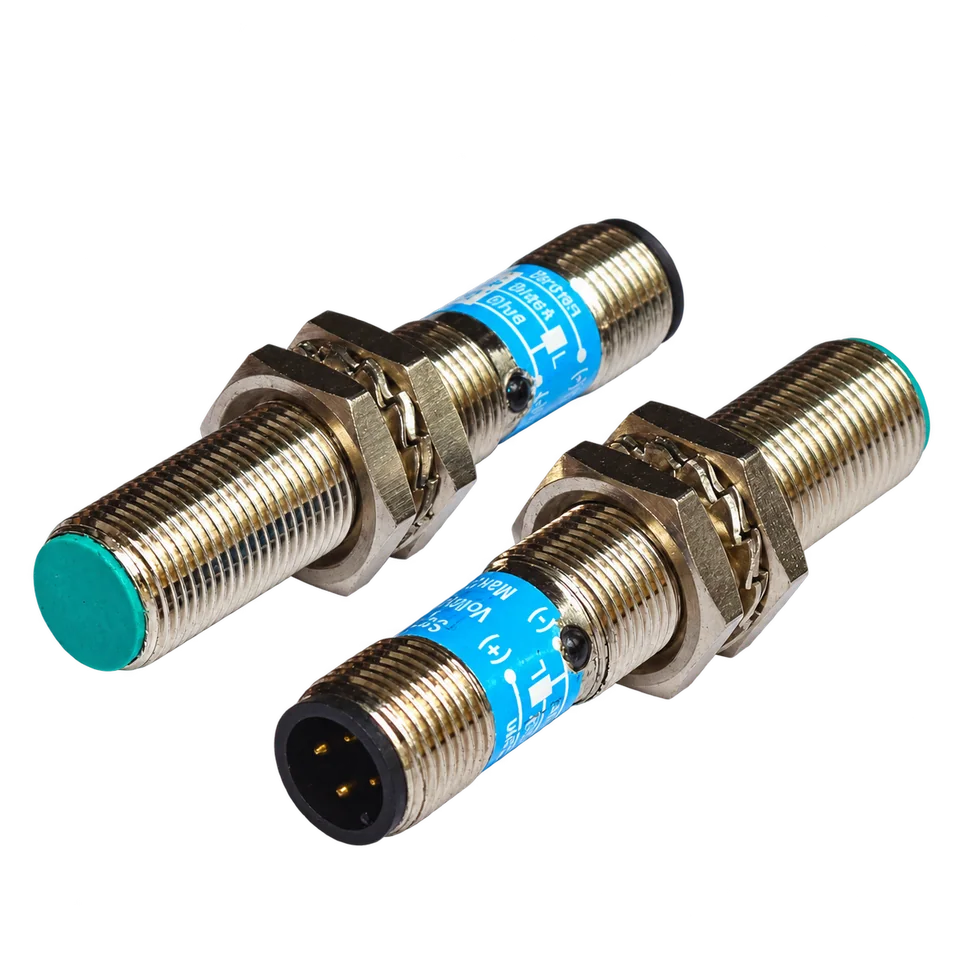

Product photographDimensions & wiring

Non-contact detection of metal targets for machine positioning and part presence.

2 mm
Sensing range
NPN / NO+NC
Output
Connector
Connection
M12
Housing
5-40 VDC
Supply
Flush
Mounting
PRODUCT SPECIFICATIONS

Technical data

Download CSV
M12 Plug In Sensor NPN NO+NC Catalog reference
Technical specifications for M12 Plug In Sensor NPN NO+NC
Sensing01
TechnologyInductive
ManufacturerDolphin
Housing / formM12
Sensing range2 mm
Electrical02
Operating voltage5-40 VDC
Output circuitNPN
Switching functionNO+NC
Maximum load current300 mA
Mechanical03
ConnectionConnector
Wire count4
Wiring notesDolphin owner rule applied 25 October 2026: Owner rule: NO+NC uses four conductors. This rule takes precedence over contradictory historical source wire-count text. Conductor count is a catalogue configuration; terminal assignment and wiring-diagram verification remain separate.
Cable lengthNA
MountingFlush
Housing materialMetallic Nickel plated
Dimensions / length60 mm
Dimensional reference04
Body diameter12 mm
Housing length (excluding tip)60 mm
Catalog values listed above
Ask an engineer
Data source & verification

Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.

DOCUMENTATION

Downloads

Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
