Inductive

M12 DC Inductive Proximity Switch PNP NO

Inductive Sensors

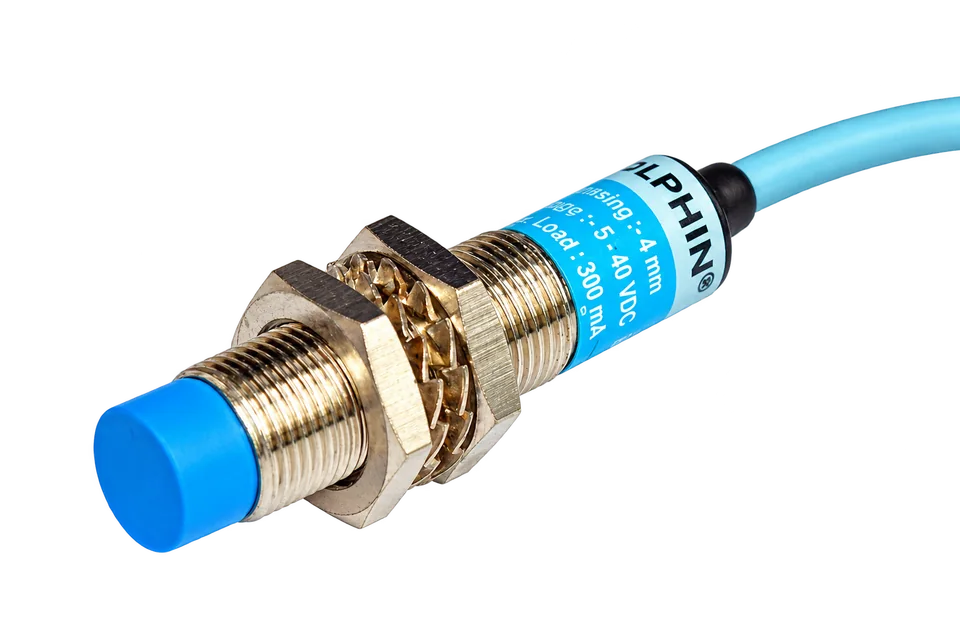

Product photographDimensions & wiring

Non-contact detection of metal targets for machine positioning and part presence.

To be confirmed
Sensing range
PNP / NO
Output
Cable
Connection
M12
Housing
5-40 VDC
Supply
Non-flush
Mounting
PRODUCT SPECIFICATIONS

Technical data

Download CSV
M12 DC Inductive Proximity Switch PNP NO Catalog reference
Technical specifications for M12 DC Inductive Proximity Switch PNP NO
Sensing01
TechnologyInductive
ManufacturerDolphin
Housing / formM12
Sensing rangeTo be confirmed
Electrical02
Operating voltage5-40 VDC
Output circuitPNP
Switching functionNO
Maximum load current300mA
Mechanical03
ConnectionCable
Wire count3
Wiring notesCatalogue audit 25 October 2026: 3 conductors recorded from explicit, consistent product notation (Output: PNP NO 3 wire). Source-based catalogue value; wiring diagram and terminal assignment still require verification.
Cable length2 m
MountingNon-flush
Housing materialMetallic Nickel plated
Dimensions / length50 mm
Dimensional reference04
Body diameter12 mm
Housing length (excluding tip)50 mm

Final specifications require confirmation.

Ask an engineer
Data source & verification

Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.

DOCUMENTATION

Downloads

Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
