Photoelectric
M18 Diffuse · Metal · 400 mm
NPN · NO

400 mmCable

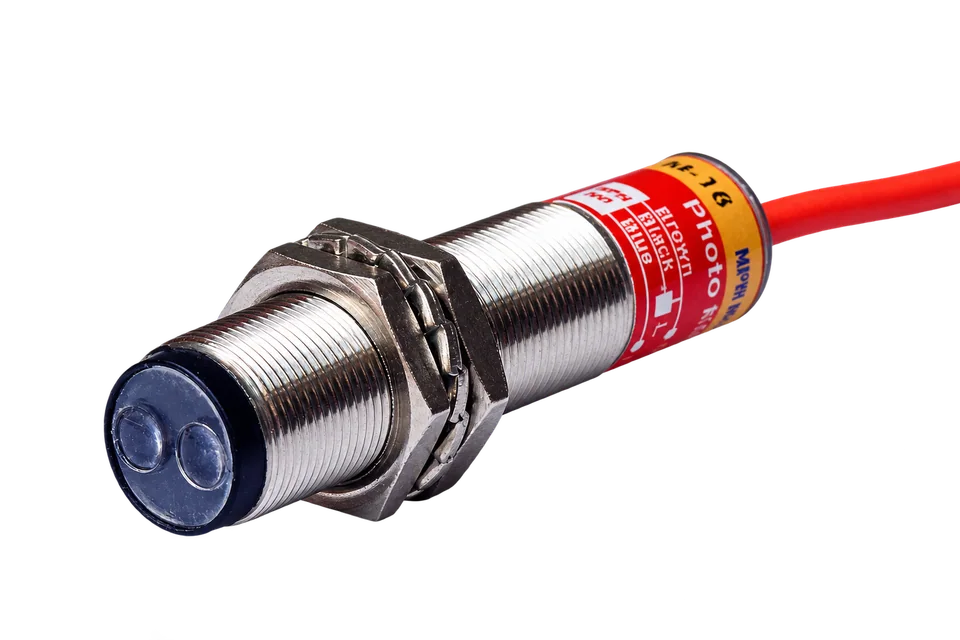

Emitter and receiver share one M18 housing (nickel-plated metal). Nominal sensing range: 400 mm. Check target colour, surface and background at the required distance before selecting the NPN NO+NC output.
| Sensing01 | |
|---|---|
| Technology | Diffuse reflective |
| Manufacturer | Dolphin |
| Housing / form | M18 |
| Sensing range | 400 mm |
| Electrical02 | |
| Operating voltage | 10–35 VDC |
| Output circuit | NPN |
| Switching function | NO+NC |
| Maximum load current | 300 mA |
| Mechanical03 | |
| Connection | Cable |
| Wire count | 4 |
| Wiring notes | 4 wires, NPN sinking NO+NC output. Confirm pin assignments before connection. |
| Cable length | 2 m |
| Mounting | NON flush |
| Housing material | Nickel-plated metal |
| Dimensions / length | 70 mm |
| Dimensional reference04 | |
| Body diameter | 18 mm |
| Housing length (excluding tip) | 70 mm |
Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.
Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
