Capacitive

M18 Plug In Capacitive Proximity Switch Sn : 8 mm NPN NC

Capacitive Sensors

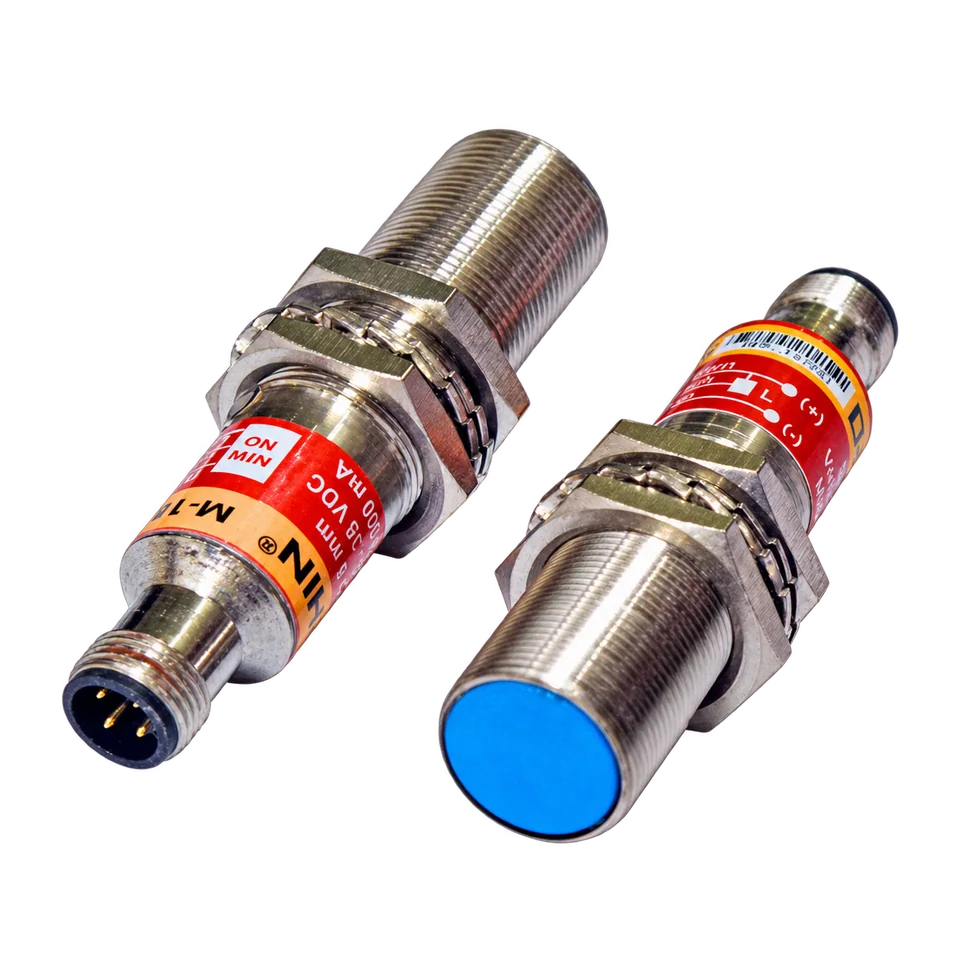

Product photographDimensions & wiring

Capacitive detection for material presence and level applications. Suitability depends on the target material and installation.

8 mm
Sensing range
NPN / NC
Output
Connector
Connection
M18
Housing
10-35 VDC
Supply
Non-flush
Mounting
PRODUCT SPECIFICATIONS

Technical data

Download CSV
M18 Plug In Capacitive Proximity Switch Sn : 8 mm NPN NC Catalog reference
Technical specifications for M18 Plug In Capacitive Proximity Switch Sn : 8 mm NPN NC
Sensing01
TechnologyCapacitive
ManufacturerDolphin
Housing / formM18
Sensing range8 mm
Electrical02
Operating voltage10-35 VDC
Output circuitNPN
Switching functionNC
Maximum load current300mA
Mechanical03
ConnectionConnector
Wire count3
Wiring notesCatalogue audit 25 October 2026: 3 conductors recorded from explicit, consistent product notation (Cable: three wire). Source-based catalogue value; wiring diagram and terminal assignment still require verification.
Cable length2 m
MountingNon-flush
Housing materialMetallic Nickel plated
Dimensions / length70 mm
Dimensional reference04
Body diameter18 mm
Housing length (excluding tip)70 mm
Catalog values listed above
Ask an engineer
Data source & verification

Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.

DOCUMENTATION

Downloads

Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
