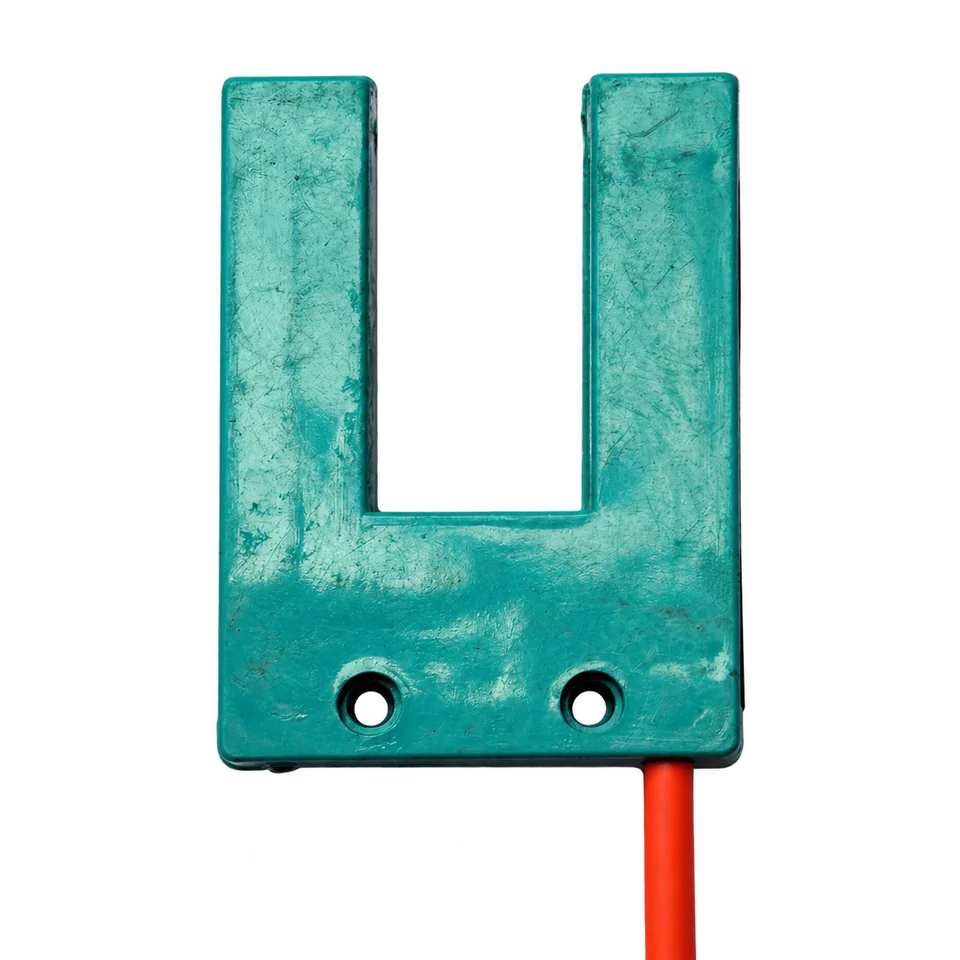

25 mm U-shaped Photo Sensor
PNP · NO

25 mmCable
Integrated emitter and receiver detect objects crossing the 25 mm slot. Check target size, insertion clearance and selected output against the controller input. Full body dimensions require a model-specific drawing.
| Sensing01 | |
|---|---|
| Technology | Optical slot |
| Manufacturer | Dolphin |
| Housing / form | U |
| Opening gap | 25 mm |
| Electrical02 | |
| Operating voltage | 10–35 VDC |
| Output circuit | PNP |
| Switching function | NC |
| Maximum load current | 300 mA |
| Mechanical03 | |
| Connection | Cable |
| Wire count | 3 |
| Wiring notes | 3 wires, PNP sourcing NC output. Confirm pin assignments before connection. |
| Cable length | 2 m |
| Mounting | slot |
| Housing material | PVC |
| Dimensions / length | To be confirmed |
| Dimensional reference04 | |
| Clear slot gap | 25 mm |
Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.
Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
