Diffuse reflective

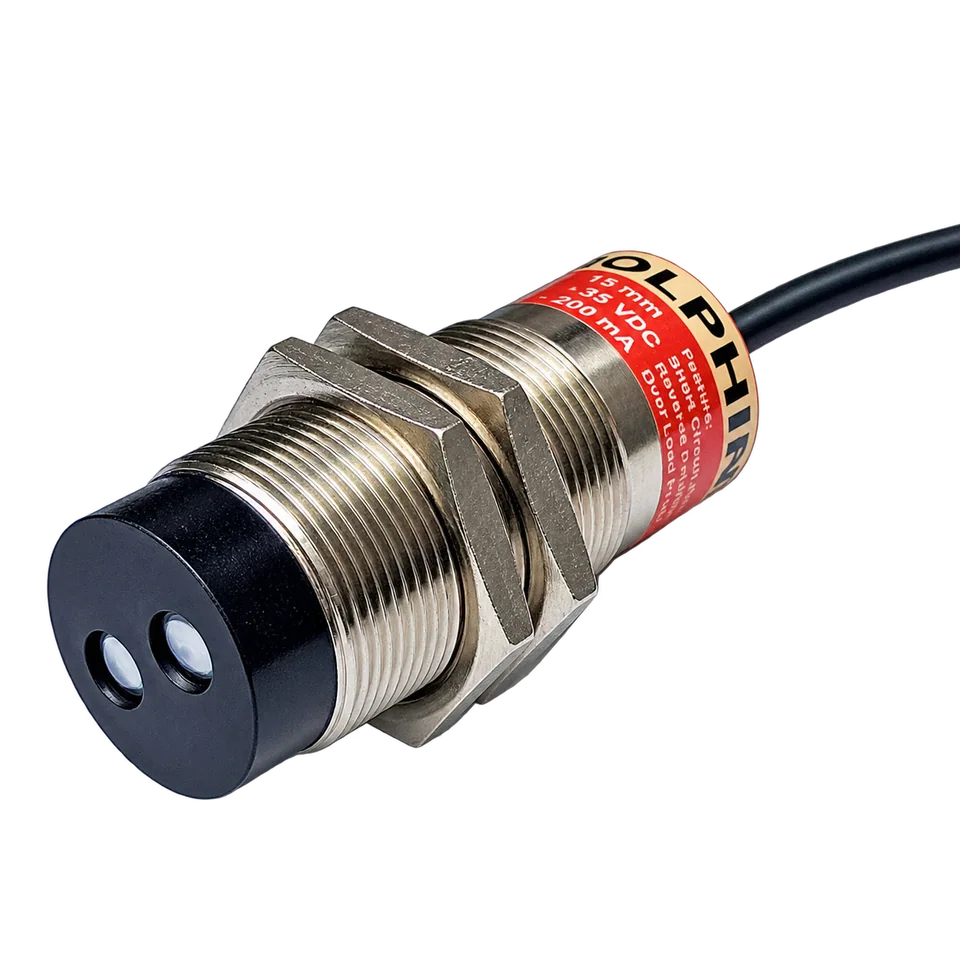

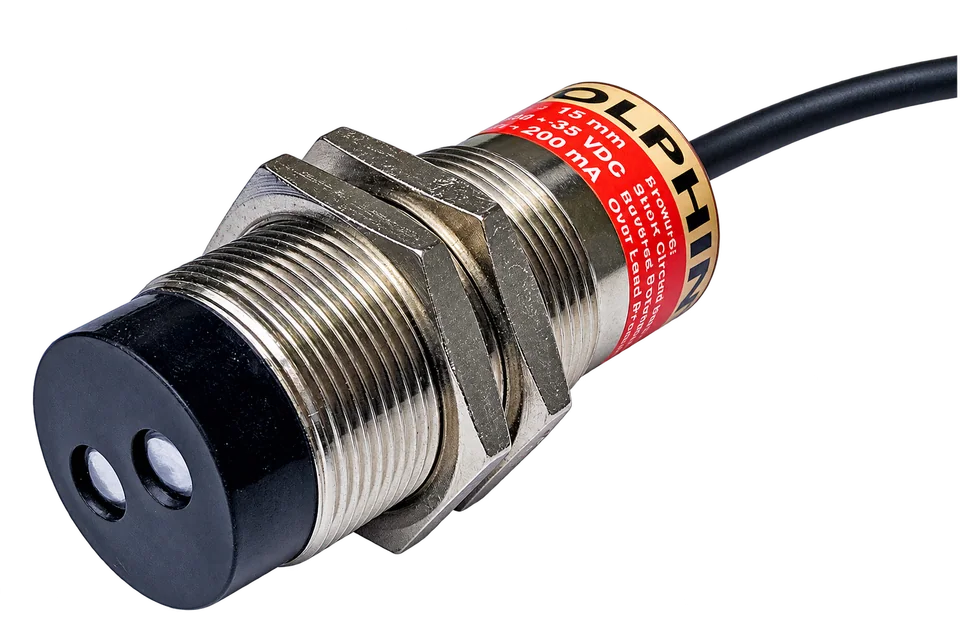

M30 diffuse photoelectric Sensor · 400 mm · PNP NC

Emitter and receiver share one M30 housing (nickel-plated metal). Nominal sensing range: 400 mm. Check target colour, surface and background at the required distance before selecting the selected output.

400 mm
Sensing range
PNP / NC
Output
Cable
Connection
M30
Housing
10–35 VDC
Supply
NON flush
Mounting
PRODUCT SPECIFICATIONS

Technical data

M30 diffuse photoelectric Sensor · 400 mm · PNP NC Catalog reference
Technical specifications for M30 diffuse photoelectric Sensor · 400 mm · PNP NC
Sensing01
TechnologyDiffuse reflective
ManufacturerDolphin
Housing / formM30
Sensing range400 mm
Electrical02
Operating voltage10–35 VDC
Output circuitPNP
Switching functionNC
Maximum load current300 mA
Mechanical03
ConnectionCable
Wire count3
Wiring notes3 wires, PNP sourcing NC output. Confirm pin assignments before connection.
Cable length2 m
MountingNON flush
Housing materialNickel-plated metal
Dimensions / length70 mm
Dimensional reference04
Body diameter30 mm
Housing length (excluding tip)70 mm
Data source & verification

Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.

DOCUMENTATION

Downloads

Manufacturer documentation is not attached. Request the exact wiring and dimensional reference before installation.
