Through-beam

M18 through-beam photoelectric Sensor · 5 m · PNP NO

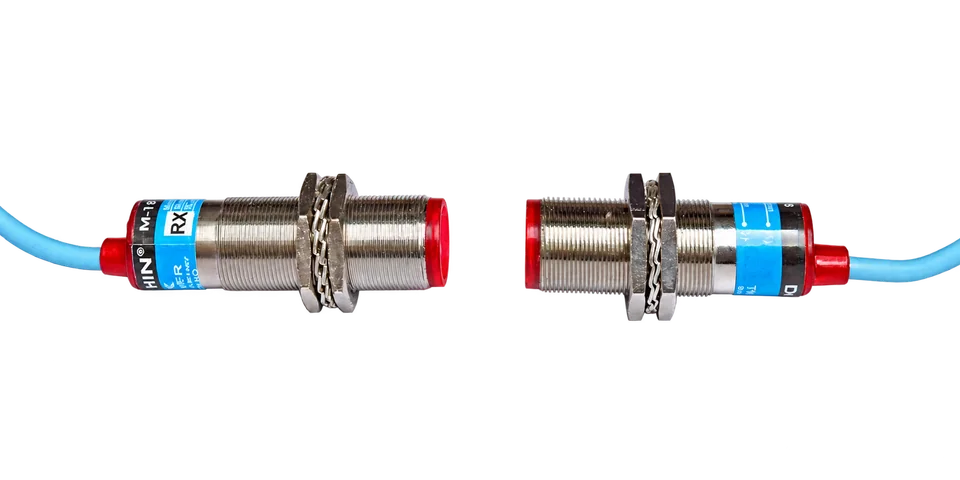

Separate M18 transmitter and receiver form a 5 m through-beam sensing pair. Mount them facing each other, align the beam and check interruption by the smallest target.

5 m
Sensing range
PNP / NO
Output
Cable
Connection
M18
Housing
10–35 VDC
Supply
NON flush
Mounting
PRODUCT SPECIFICATIONS

Technical data

M18 through-beam photoelectric Sensor · 5 m · PNP NO Catalog reference
Technical specifications for M18 through-beam photoelectric Sensor · 5 m · PNP NO
Sensing01
TechnologyThrough-beam
ManufacturerDolphin
Housing / formM18
Sensing range5 m
Electrical02
Operating voltage10–35 VDC
Output circuitPNP
Switching functionNO
Maximum load current300 mA
Mechanical03
ConnectionCable
Wire count3
Wiring notesTransmitter: 2 power wires; receiver: 3 wires, PNP sourcing NO output. Confirm pin assignments before connection.
Cable length2 m
MountingNON flush
Housing materialNickel-plated metal
Dimensions / length65 mm
Dimensional reference04
Body diameter18 mm
Housing length (excluding tip)65 mm
Data source & verification

Based on Dolphin’s supplied product information. Confirm the exact orderable configuration with the team.
